3" x 3" PVC Camlock Hose Shank Fitting - Plastic Hose Barb Coupler - Poly Type E Male Cam Lock Hose Adapter - Barbed Hose Cam & Groove Coupler

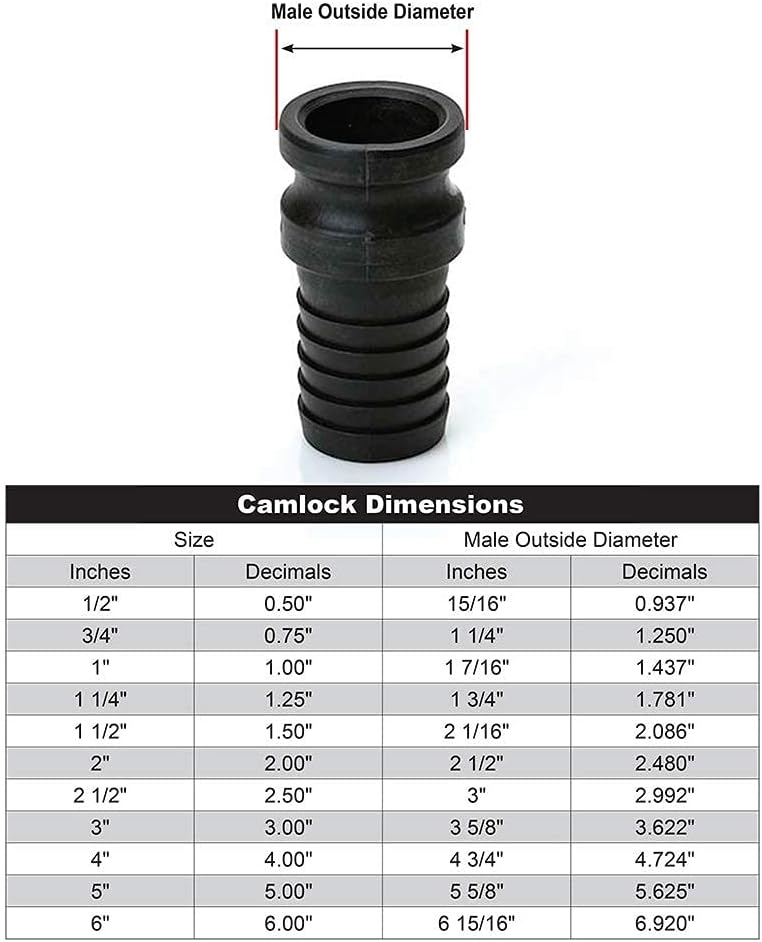

Type "E" polypropylene 3 inch male camlock coupler to 3 inch hose shank. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Connections:The male side of this adapter will only connect to 3 inch female camlock. Camlock Dimensions:Size - 3.00Male Outside Diameter - 3.622Warning: Polypropylene cam & groove should not be mixed with metal fittings. We recommend using polypropylene with other poly, plastic, pvc, banjo type camlock fittings.How it works:To make a connection, simply slide the camlock adapter into the camlock coupling and with normal hand pressure, press the cam levers down.Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.Cam and Groove Couplings Industries:ChemicalSanitaryGovernmentStorageDry bulk PetroleumApplications:Reverse osmosis systemsWater treatmentWater transportIrrigationWaste / vacuum trucksHydraulic oil, coolants, gasoline and petroleum productsSalt waterWaste waterChemical movement & storage

• Type "E" PVC Camlock Hose Barbed Fitting
• Camlock Size - 3 inch Male
• Barb Shank Size - 3 inch
• Maximum Operating Pressure: 60 PSI
• Polypropylene Black Plastic (Poly) Cam & Groove
