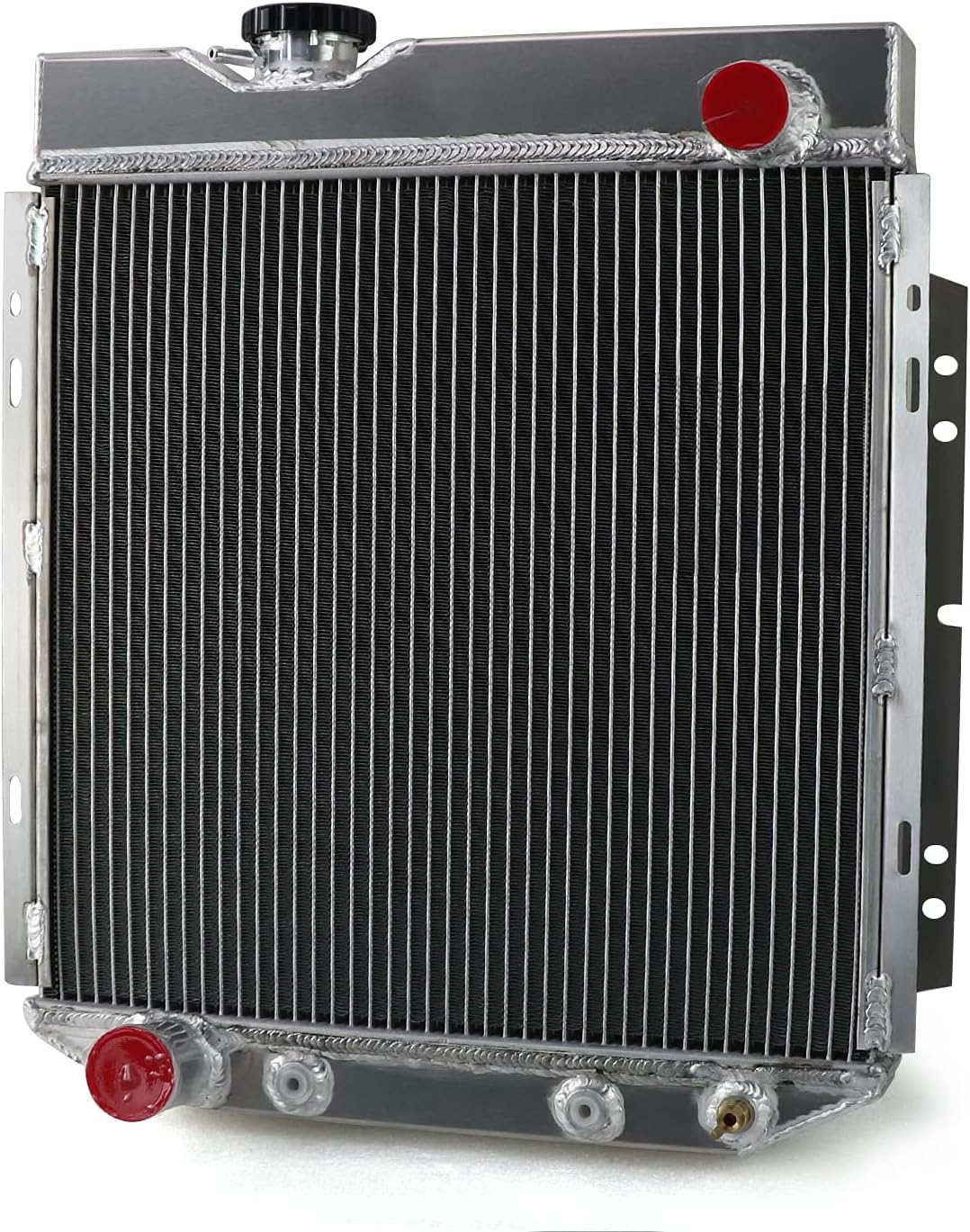

Aluminum Radiator for 1960-1966 1924 Ford Ranchero Mustang Falcon Model T Mercury Comet 2.8L L6 4 Row Core 14" Fan Shroud Thermostat Relay Kit

Fitment: For Ford Falcon Base/Futura 2.8L l6 GAS 1965 For Ford Falcon Base/Futura 3.3L l6 GAS 1965 For Ford Falcon Base 4.7L V8 GAS 1965 For Ford Model T Base 2.9L l4 GAS 1924 For Ford Mustang Base 2.8L l6 GAS 1965 For Ford Mustang Base 3.3L l6/4.7L V8 GAS 1965-1966 For Ford Mustang Shelby 4.7L V8 GAS 1965-1966 For Ford Ranchero Base 2.4L l6 GAS 1960-1964 For Ford Ranchero Base 2.8L l6 GAS 1961-1965 For Ford Ranchero Base 3.3L l6 GAS 1964-1965 For Ford Ranchero Base 4.7L V8 GAS 1965 For Mercury Comet Base 2.8L l6 GAS 1964-1965 For Mercury Comet 404 2.8L l6 GAS 1964 For Mercury Comet Base 3.3L l6 GAS 1964-1965 For Mercury Comet 404 3.3L l6 GAS 1965 For Mercury Comet Base 4.7L V8 GAS 1964-1965 This Listing Is Including: 1 X 4-Row Aluminum Radiator 1 X Aluminum Shroud 1 X 14" Fans 1 X Thermostat Relay Kit FAN DETAILS: Maximum Fan CFM: 2200±200 FAN DIAMETER X HEIGHT X THICKNESS:14.05" X 14.05" X 2.5" Number of Blades: 8 blades (Plastic) Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps Radiator Details: 4 Row Radiators Delivery: Local Delivery Mounting System: Bracket Style: Downflow Radiator Part Number: CU1463,889251,8011463,1463,251-3,CC251,CR251,MC251,CU251,0251, 433251, A1463,1605-480444, PR0251F,APDI 8011463 Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.

• Core Size: 16.46" H x 16.85" W x 2.44" T ; Overall Size : 21.46" H x 19.69" W x 5.71" T
• Upper Inlet: 1.5" located on the passenger side ; Lower Outlet: 1.77" located on driver side ; Transmission Cooler: ￠26×150×1/8-27NPT（T）
• High-quality material: Transmission Oil Cooler is constructed of high quality AA5052 aircraft grade aluminum construction to ensure an extremely long lasting operate life. The core of the Transmission Oil Cooler is welded in vacuum brazing furnace, no epoxy.
• Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant
• Brazed core technology to guarantee optimum performance and dependability ; Carefully crafted to exceptional OE standards for precise fit.
