EITAI-ETCR2300 Pile Type Clamp Ground Earth Resistance Meter Tester 0.00Ω-20kΩ, 65mm×32mm/2.56''x1.26'', Manufacturer Direct Sales, Ground Pile Clamp Tester, telurometro

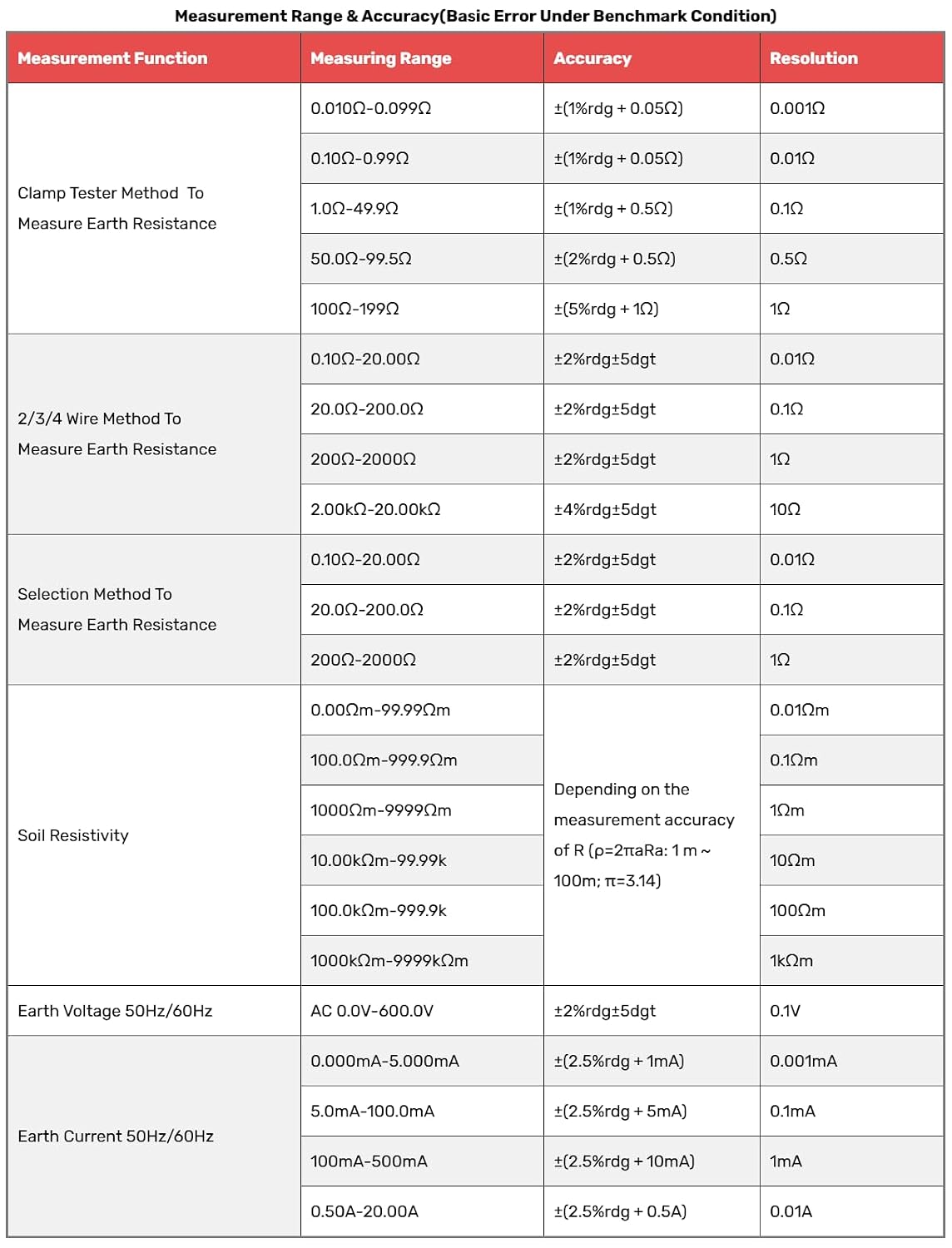

OverviewEITAI2300 Clamp Ground Resistance Tester, also known as ground pile clamp tester, which is used for measurement of the earth resistance,soil resistivity, earth current,earth voltage. The tester has various measurement methods such as clamp tester method, two-wire method, three-wire method, four-wire method, and selection method. The tester introduces FFT (fast Fourier transform) technology and AFC (automatic frequency control) technology. It has unique anti-interference ability and environmental adaptability. The consistency of repeated tests is strong to ensure the high precision, high stability and high reliability of the measurement.Technical SpecificationPower Supply: DC 3.7V 2600mAh rechargeable lithium battery, the battery is fully charged about 4.2VDisplay Mode: 2.5 inch color LCD screenEarth Resistance Measurement Method: Clamp tester method, two-wire method, three-wire method, four-wire method, selection methodEarth Resistance Range: 0.00Ω-20kΩSoil Resistivity Range: 0.00Ωm-9999kΩmEarth Current Range: 0.000mA-20AEarth Voltage Range: 0.0V-600.0VTest Frequency: 128Hz/111Hz/105Hz/94Hz(AFC Automatic frequency control)Short Circuit Test Current: AC 10mA maxOpen Circuit Test Voltage: AC 14V maxElectrode Spacing Range: 1m-100mClamp Jaw Size: 65mm×32mm(2.56''x1.26'')Tester Size: 307mm×98mm×56mmTester weight: about 1112gTest Line 4 PCS: red 20m, black 20m, yellow 10m, green 10m each 1 pieceSimple Testing Line 2 PCS: red 1.6m, black 1.6m each 1 pieceAuxiliary Earth Rod 4 PCS: φ9mm×230mm（935g）Line Voltag:e Measurement below AC 600VData Hold: The "HOLD" symbol indicates when holding dataMemory: 500 groups, "HOLD" symbol storage indicationData Access: The "READ" symbol indicates when viewing dataOverflow Display: When the overrange overflows, the "OL” symbol indicatesWorking Current: Measurement: 600mA Max (maximum backlight)Withstand Voltage: AC 3700V/rms(Between the circuit and the housing)Working Temperature & Humidity: -10℃-40℃; below 80%rh

• English customer service and technical support, we deliver an excellent and secure user experience.
• The tester has various measurement methods such as clamp tester method, two-wire method, three-wire method, four-wire method, and selection method to measure the earth resistance.
• The tester has a storage function that automatically stores 500 sets of test results containing date and time.
• Alarm function: Alarm threshold can be set, equipped with 2.5-inch color LCD screen, Memory：Data Storage 500 Groups, and Bluetooth Communication
