MAPLE ACE UCP209 Pillow Block Bearing 45mm Bore, 2-Bolt, Self-Aligning, R3 Triple Lip Seal, Heavy Duty (Qty 2)

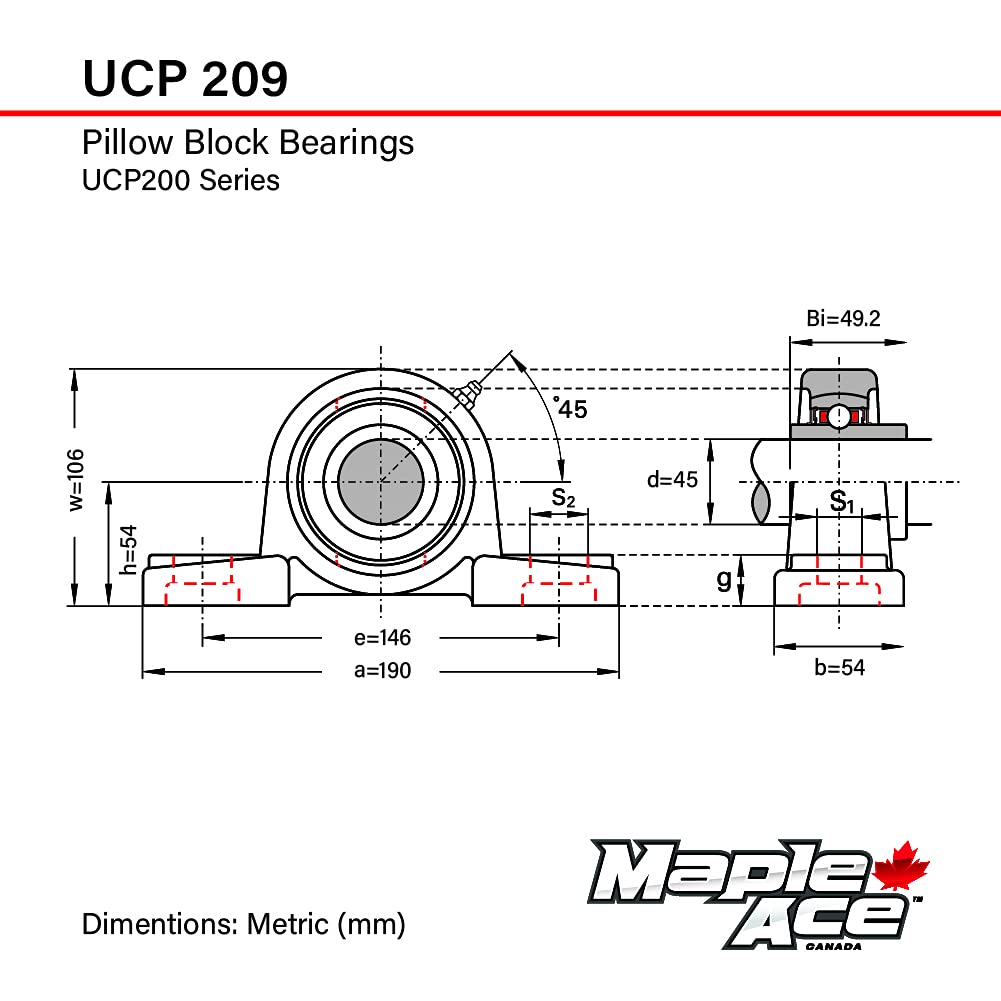

This UCP PILLOW BLOCK MOUNTED BEARING consists of an INSERT BEARING and a CAST IRON housing. The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water. Bearing is Pre-Lubricated with High-Quality Grease, ideal for use in High and Low-temperature settings. Has a Set Screw Lock on its surface for securing the shaft. The PILLOW BLOCK can be mounted on levelled surfaces using the Two Bolt Holes. Grease Fitting Offset on top to Relubricate the bearing. - Specification: Item UCP209R3, Series UCP200, Bearing Number UC209R3, Housing Number P209, Bearing Bore Diameter Metric 45 mm, Bearing Bore Diameter Inch 1.7716 in, Bearing Width Inner Ring Matric 49.20 mm, Bearing Width Inner Ring Inch 1.937 in, Bolt Size 1/2 in, Number of Bolts 2, Bolt Hole Center to Center (e) Matric 146 mm, Bolt Hole Center to Center (e) Inch 5.748 in, Overall Length (a) Matric 190 mm, Overall Length (a) Inch 7.48 in, Overall Height (w) Matric 106 mm, Overall Height (w) Inch 4.173 in, Overall Width (b) Matric 54 mm Overall Width (b) Inch 2.126 in, Mounting Surface to Shaft Center (h) Matric 49.20 mm, Mounting Surface to Shaft Center (h) Inch 2.126, Dynamic Load Rating Cr 33200 N, Static Load Rating Cor 21600 N, Limiting Speed 4300 r/min, Bearing Clearance Normal, Bearing Sealing type R3 Triple-Lip Seal, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Rolling Element Indicator Ball, Bearing Material Gcr15, Housing Material H200 Cast Iron, Locking Type Set Screws, Weight 2.140 KG.

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED
