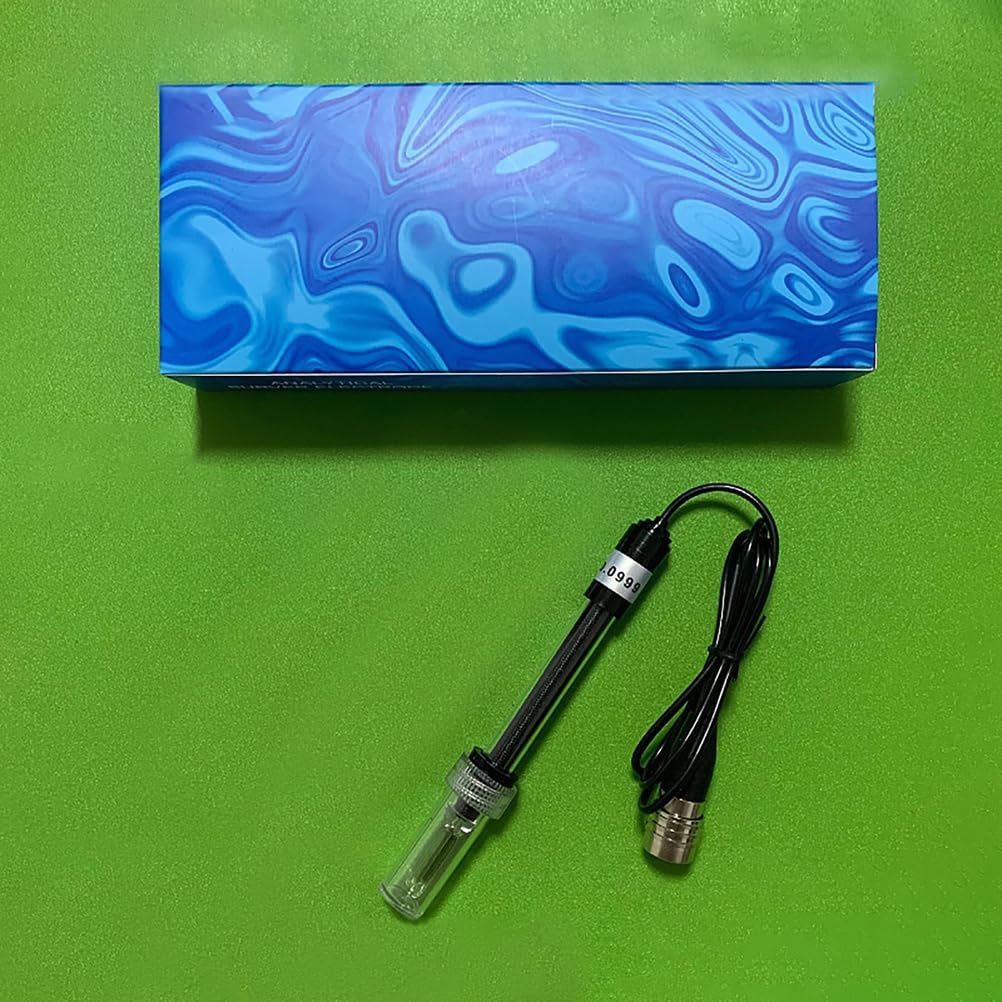

TBQATNTS DJS-0.1C Conductivity Electrode, Pure Water Bright Conductivity Electrode, for Use with A Conductivity Meter

Type Product Code: DJS-0.1C Platinum ElectrodeCellular Conductivity (cm⁻¹): 0.1±0.02Dimensions (mm): φ12×120Connector: Three-pin plug or long plugApplication: Suitable for conductivity measurement in pure or ultrapure water

• Usage, Maintenance, and Precautions:
• 1. This electrode is available in bright and platinum black plating versions. Platinum black plating increases the effective area of ​​the electrode sheet, preventing and reducing electrode polarization. Platinum black plating electrodes are more suitable for solutions used in conductivity measurement.
• 2. For platinum black plating electrodes, immerse them in deionized water before use to prevent inertization of the platinum black.
• 3. If the platinum black plating peels off or fades, it must be re-plated to ensure the accuracy of the measured data.
• 4. The conductivity cell constant marked on the electrode at the factory is for reference only. To verify the accuracy of the marked conductivity cell constant, find the conductivity value C of the corresponding standard solution based on the concentration and temperature of the solution being measured, and then calculate the conductivity cell constant K based on the measured conductivity meter reading P: K = C/P.
